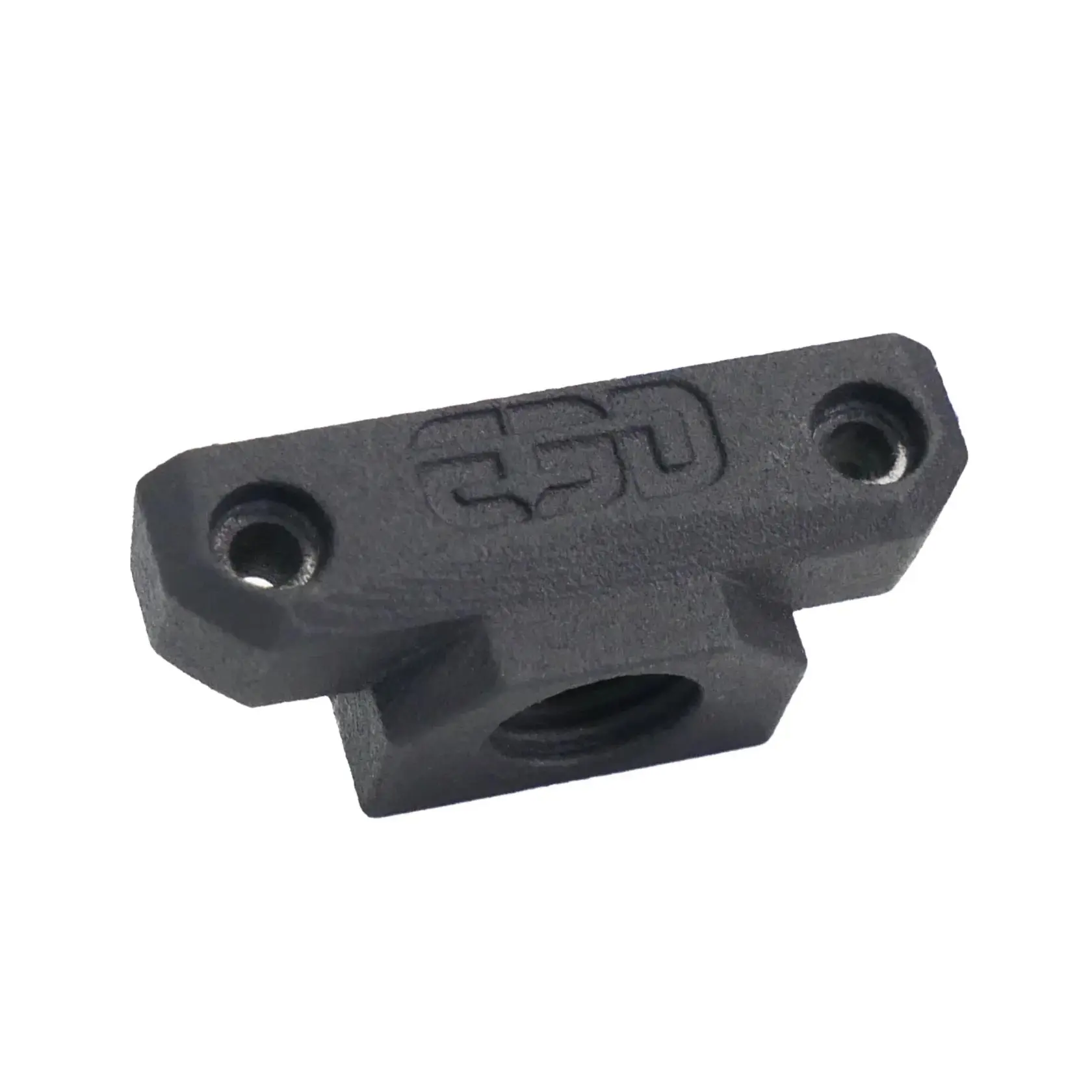

The E3D Revo™ Revo LGX® Adaptor is a high-performance mounting solution designed to seamlessly integrate the Revo HotEnd system with the Bondtech LGX® extruder. This adaptor ensures a secure and precise fit, improving extrusion consistency and thermal performance while simplifying the installation process.

Crafted from high-quality materials, the adaptor is engineered for durability and optimal heat dissipation. It allows for quick and tool-free nozzle changes, making maintenance and customization effortless. Whether you're a hobbyist or a professional 3D printing enthusiast, this adaptor is the perfect upgrade for maximizing the performance of your LGX® extruder and E3D Revo™ HotEnd.

Contents of the Kit:

• 1x Revo LGX® Adaptor Plate
• 1x Fixing Hardware Set (screws, washers, spacers)
• 1x Installation Guide

How to Install:

1. Prepare Your Components

   • Ensure you have the Bondtech LGX® extruder and E3D Revo™ HotEnd ready.
   • Power off and unplug your 3D printer before installation.

2. Mount the Adaptor

   • Align the Revo LGX® Adaptor Plate with the mounting holes on your LGX® extruder.
   • Secure the adaptor using the provided fixing hardware.

3. Attach the Revo HotEnd

   • Insert the E3D Revo™ HotEnd into the adaptor plate.
   • Fasten it securely to ensure a stable connection.

4. Reconnect and Calibrate

   • Reconnect any necessary wiring, such as the heater and thermistor cables.
   • Perform a firmware check to ensure proper temperature readings.
   • Run an extrusion test to verify smooth filament flow.

5. Start Printing!

   • Once everything is set up, load your filament and begin printing with enhanced precision and ease.

This Revo LGX® Adaptor is the ultimate upgrade for users seeking quick nozzle swaps, improved extrusion performance, and hassle-free maintenance in their 3D printing workflow.
